Titanium Elastic Nailing System

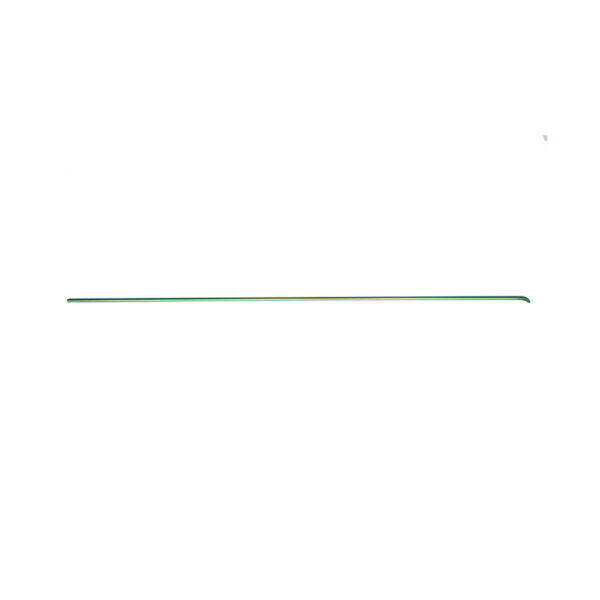

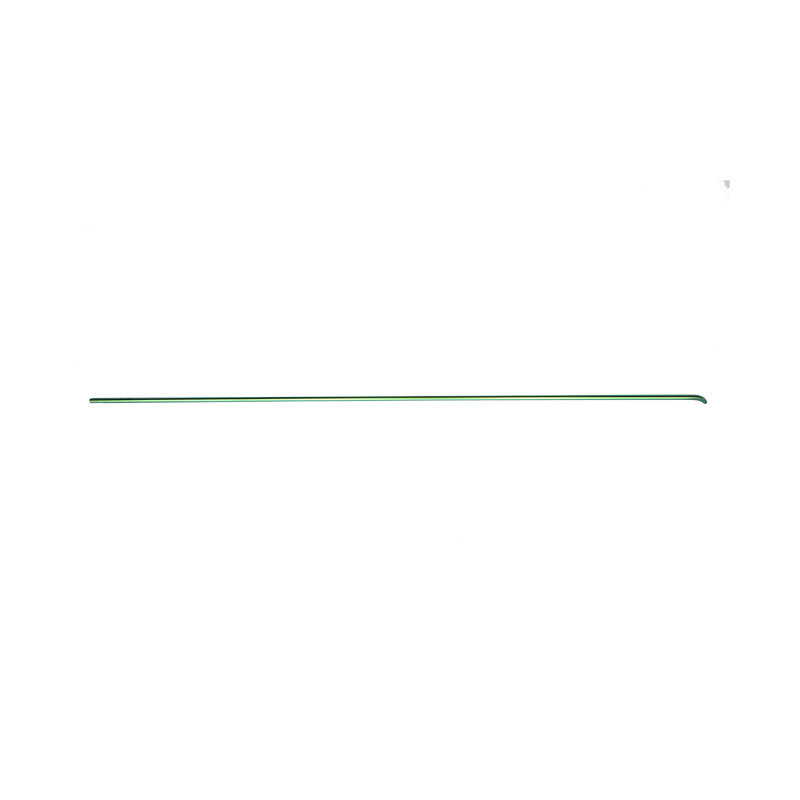

Elastic Nail

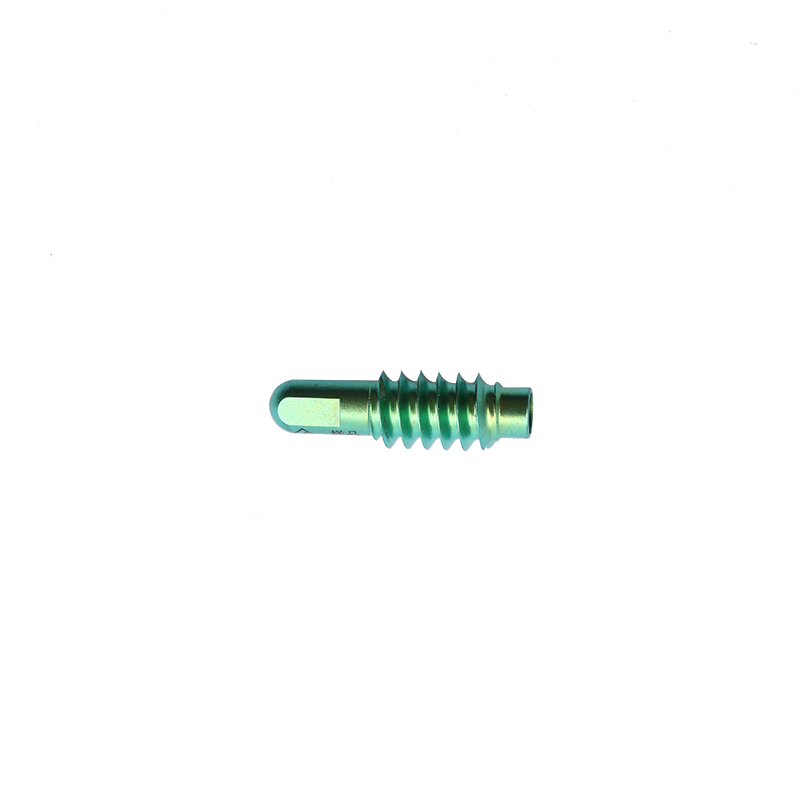

End Cap

Titanium Elastic Nailing System

Category
Flexible Stabilization for Pediatric & Simple Adult Fractures
Biocompatible titanium alloy nails providing elastic stable intramedullary fixation (ESIN) for minimally invasive fracture management. Features pre-bent tips, smooth trocar ends, and diameter-matched instrumentation for rapid insertion. Ideal for pediatric shaft fractures and select adult patterns requiring flexible rigidity.



Key Highlights:
✓ Biomechanical Synergy: Titanium modulus mimics bone → promotes callus formation
✓ Minimally Invasive: Sub-1cm incisions; no intraoperative imaging restrictions
✓ Diameter Range: 1.5–4.0mm (peds) / 3.0–5.0mm (adults)
✓ Contoured Precision: C-shaped/S-shaped pre-bending for anatomic fit
✓ Complication Control: Smooth tips ↓ neurovascular risk; material ↓ infection rate
✓ MRI/CT Compatibility: Zero artifact vs. stainless steel



Target Cases:
  • Pediatric femoral/tibial diaphyseal fractures (age 3-14)
  • Adult forearm fractures (radius/ulna shafts)
  • Clavicle midshaft nonunions
  • Osteogenesis imperfecta stabilization



The gold standard in flexible fixation – where biology meets biomechanics.
Request Quote
Titanium Elastic Nailing System
Revolutionizing Flexible Intramedullary Fixation



Clinical Philosophy
This system leverages titanium’s elastic properties to transform rigid intramedullary fixation into a biologically harmonious solution. By enabling controlled micro-motion at fracture sites, it accelerates callus formation while preserving periosteal blood flow – achieving union rates >95% in pediatric femoral shafts without open reduction.



Engineering Excellence

FeatureClinical Impact
Titanium Alloy (Ti-6Al-4V ELI)Modulus (110 GPa) near cortical bone → ↓ stress shielding
Pre-Bent Trocar Tips (C/S Shapes)Automatic nail rotation → 360° canal filling without fluoroscopy
Diameter-Adjusted InstrumentationSingle-tool nail insertion/cutting (↓ operative time 40%)
Smooth Distal Ends↓ Risk of neurovascular impingement (0.3% complication rate)



Advantages Over Conventional Solutions



  1. Biologic Healing Priority
    • Allows 0.5–1mm fracture site motion → stimulates callus vs. plate-induced atrophy
    • No reaming required → preserves endosteal blood supply
  2. Surgical Efficiency
    • Insertion time ≤15 mins (diaphyseal fractures)
    • Radiation exposure ↓ 70% vs. locking nailing
  3. Complication Mitigation
    • Nail removal rate <8% (vs. 25–60% with plates)
    • Delayed unions ↓ 4x vs. casting (particularly in OI patients)



Indications

  • Pediatric:
    – Femoral/tibial shaft fractures (31-D/4-M)
    – Forearm both-bone fractures (22-D/3.1)
    – Humeral shaft fractures (age 5-12)
  • Adult:
    – Isolated ulna/radius shaft fractures
    – Clavicle nonunions with >1.5cm shortening
    – Supplemental fixation in pathologic fractures



Contraindications

  • Absolute:
    Comminuted fractures (>3 fragments)
    Intra-articular extension
    Active osteomyelitis
    Nail diameter >50% canal diameter
  • Relative:
    Obesity (BMI >30 adults; weight >50kg in peds)
    Severe osteoporosis (T-score <−3.0)
    Ipsilateral joint implants



Critical Postoperative Protocol

Weight-Bearing: Touch-down only × 3 weeks → progressive loading guided by callus
Implant Removal: Optional at 6-9 months (recommended for athletes/dancers)
MRI: Conditional ≤3.0 Tesla (no artifact distortion)
Rx Only. System includes nail benders, introducers, extractors & custom cutters.
