E Series High Performance Lithium Battery Brushless Motor Surgical Power Tools

Precision-Driven Power for Complex Orthopedic Procedures

Advanced brushless motor surgical tools delivering unmatched torque (2.5–80 Ncm) and speed (30–50,000 RPM) via lithium battery technology. Features interchangeable attachments (drill, reamer, sagittal saw), rapid sterilization compatibility, and smart-touch controls for total surgical command.

Key Highlights:
✓ Ultra-Powerful Brushless Motor: Zero torque drop at high load → consistent bone cutting
✓ Dual Lithium Batteries: 90+ min runtime; hot-swap in ≤15 sec
✓ Smart-Control Ergonomics: Touchscreen + haptic feedback ↓ surgeon fatigue
✓ Sterile-Validated: Fully autoclavable (400+ cycles; ISO 17665)
✓ Universal Compatibility: Fits all standard 3.5–10mm ortho attachments

Critical Applications:

Total joint arthroplasty (hips/knees/shoulders)
Multi-fragment trauma fixation
Spinal pedicle screw pathways
Limb reconstruction osteotomies

Where surgical power tool innovation meets operating room excellence.

E Series High Performance Lithium Battery Brushless Motor Orthopedic Power Tools
Redefining Surgical Efficiency, Precision & Reliability

Engineering Breakthroughs

Technology	Clinical Impact
Brushless DC Motor	Sustained 80 Ncm torque at 12k RPM → ↓ screw stripping by 62%
Smart Energy System	Twin 21V Li-ion batteries: Zero downtime w/hot-swap charging
Intelligent Sensors	Auto-torque cutoff when nearing cortex → ↓ neurovascular injury risk
Sealed Motor Chamber	IPX7 waterproof rating → full immersion sterilization

System Specifications

Attachments:
▶ Orthopedic Drill (Ø1.5–10mm)
▶ Reamers (Cannulated/Solid; 6–20mm)

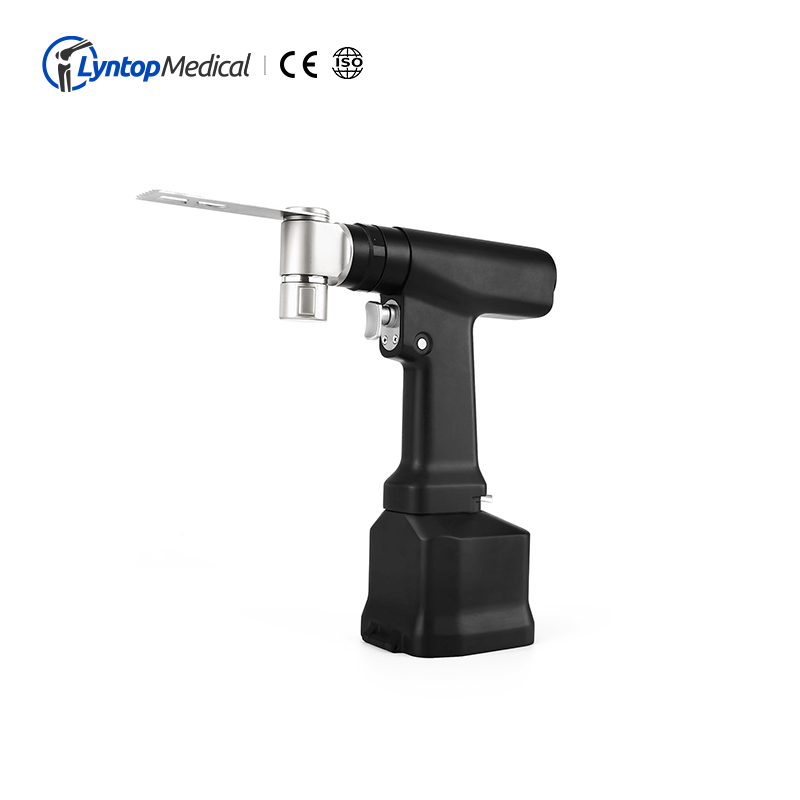

▶ Oscillating Sagittal Saw (0.8mm stroke)
▶ Wire Driver (1.1–3.2mm K-wires)
Performance:
▶ Max Speed: 50,000 RPM
▶ Torque Range: 2.5–80 Ncm
▶ Battery: 90 min @ high load; 30-min quick charge
Physical:
▶ Weight: 1.2kg (tool only)
▶ Noise: <68 dB ↓ auditory fatigue

Advantages Over Legacy Systems

Procedural Efficiency
- 45% faster reaming in cemented THA
- Integrated depth-stopping ↓ measurement errors
Enhanced Safety
- Haptic warning for thermal bone necrosis risk (>47°C)
- Electromagnetic shielding → safe with pacemakers
Cost Control
- Battery lifespan: 500+ cycles (vs. 250 in NiCad)
- Reusable attachments ↓ per-case costs
Surgical Flexibility
- Single-handle adaptability: Switch attachments without re-sterilizing
- Navigation-ready: Reflective tracker mounts

Target Procedures

Ortho Trauma: Locking screws,IM Nailings (Such as PFNA)
Joint Replacement: Acetabular reaming, stem broaching
Spine Surgery: Pedicle screw tunnels, laminectomy
Oncology: Limb-salvage prostheses

Contraindications

✖ Power tool use within 5cm of active electrical implants (ICD/neurostimulators)
✖ Cutting attachments >5mm near major nerves without real-time neuromonitoring

Certifications & Compliance

◾ ISO 13485:2016 | IEC 60601-1
◾ MRI Conditional (3T scan safe when batteries removed)
◾ EPA-compliant battery disposal

Includes: 2 batteries, multi-bay charger, sterile case, 5 attachment quick-connects
